Qingling uses the best quality of imported acetate fabric as backing for its acetate fabric tapes. They have an acrylic adhesive. These tapes have excellent breaking strength and flexibility, allowing excellent adhesion to complex contours and providing both insulation and corrosion protection.

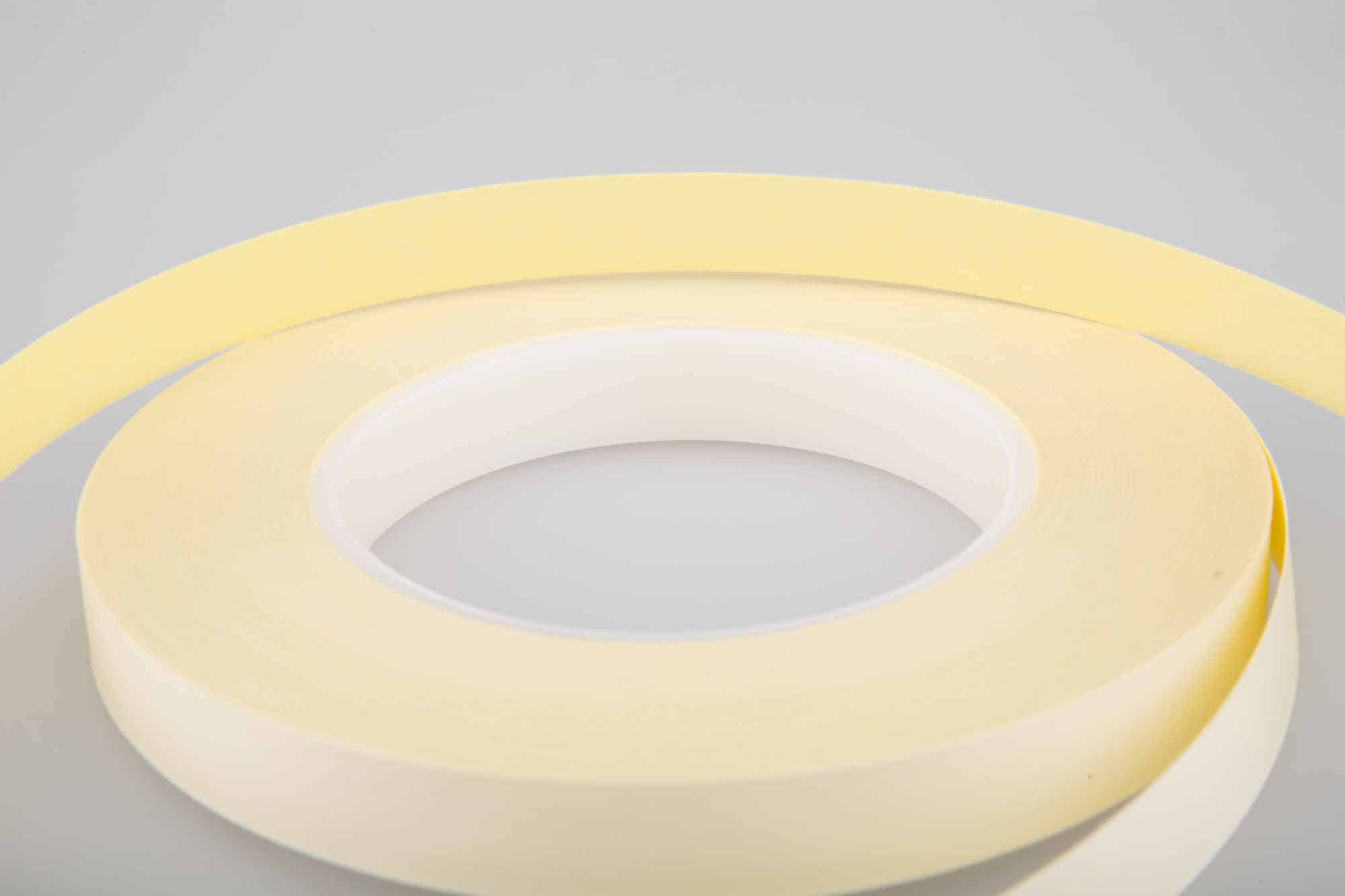

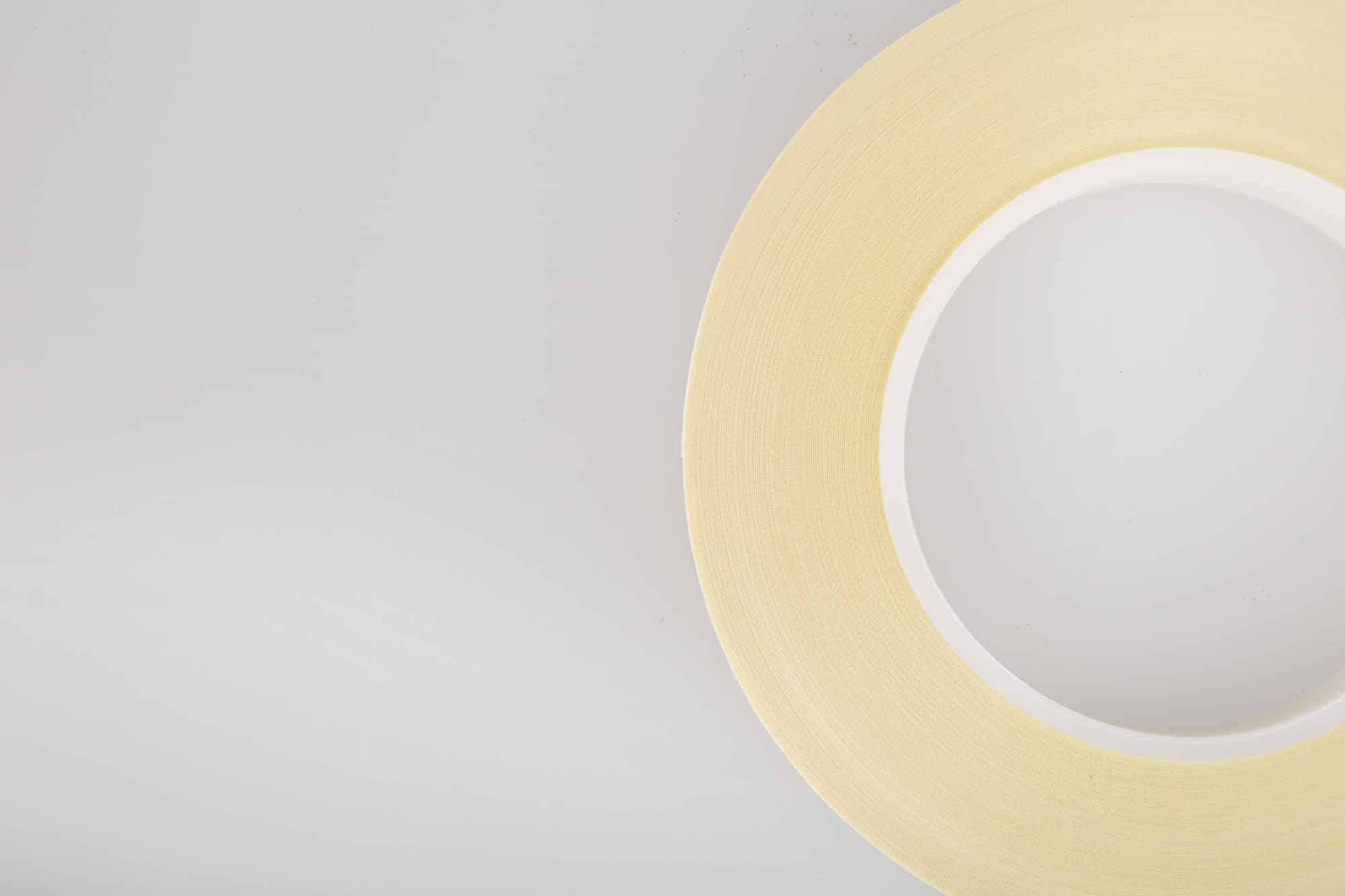

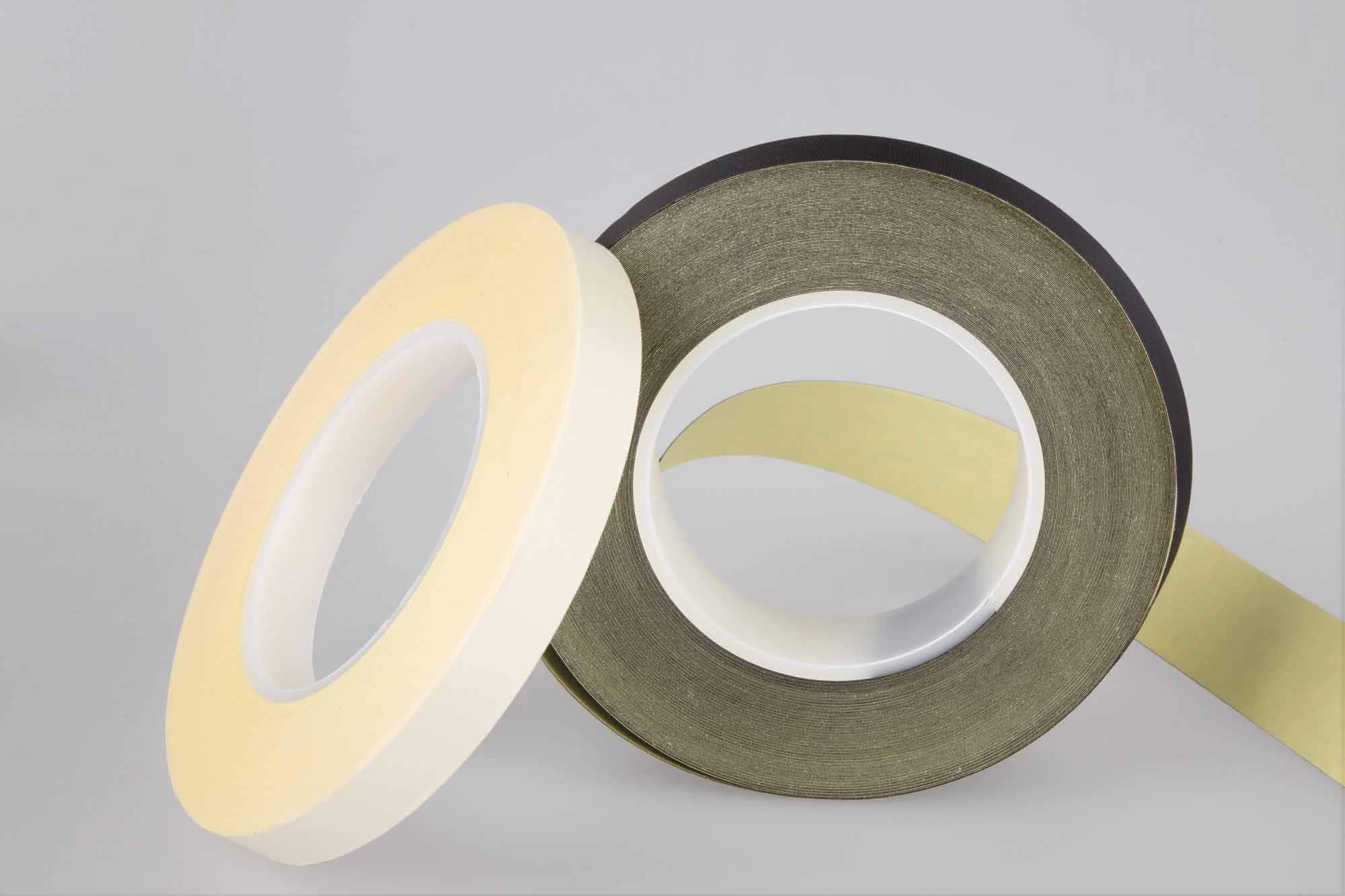

Acetate Fabric Tape
Product Description
Applications
Motors, transformers, deflection coils, and applications where flame retardant insulation is required.
J-533
Color: White
Thickness: 0.21mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 105°C
Length: 36 Yards
Thickness: 0.21mm
Tensile Strength: 40 N/10mm
Temperature Resistance: 105°C
Length: 36 Yards
Adhesives: Acrylic
Adhesion: 15 N/25mm
Breaking Elongation: 18%
Voltage Resistance: 2 KV
UL Certification: /
Adhesion: 15 N/25mm
Breaking Elongation: 18%
Voltage Resistance: 2 KV
UL Certification: /
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
| Item | Color | Adhesives | Thickness | Adhesion | Tensile Strength |
|---|---|---|---|---|---|
| J-533 | White | Acrylic | 0.21mm | 15 N/25mm | 40 N/10mm |
| Item | Breaking Elongation | Temperature Resistance | Voltage Resistance | Length | UL Certification |
|---|---|---|---|---|---|
| J-533 | 18% | 105°C | 2 KV | 36 Yards | / |
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
Product Application
