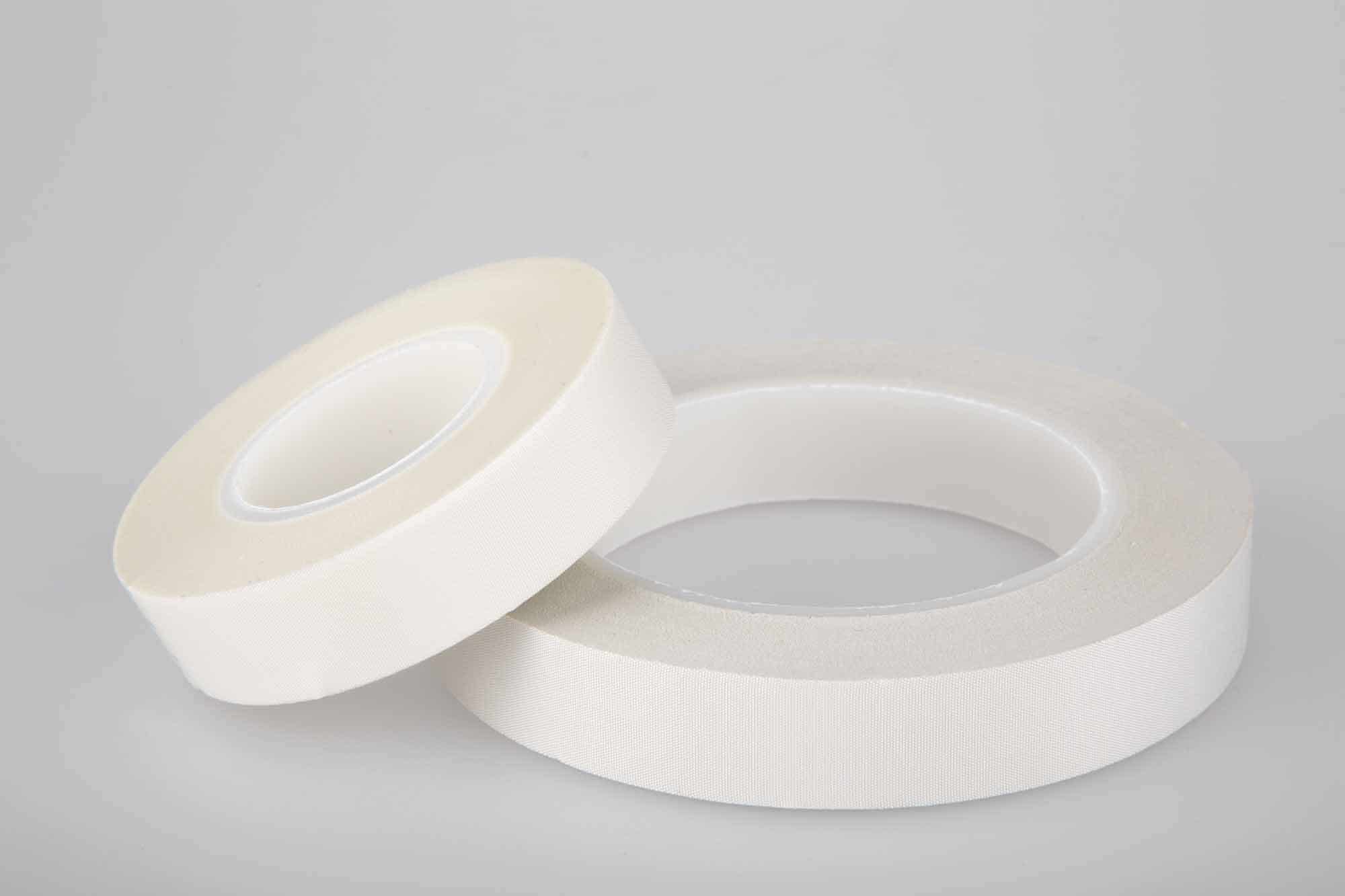

Glass Cloth Tape

Product Description

Qingling uses only high-quality glass fiber fabrics as backing for these tapes. We use only imported premium silicone as the adhesive. Glass cloth tapes are used to insulate wiring in high-temperature applications where abrasion and puncture resistance are important. They are also used as masking in hot spraying operations.

UL certification file number: E257132, glass-fiber fabric tapes with UL510 approved flame-retardant performance.

Applications

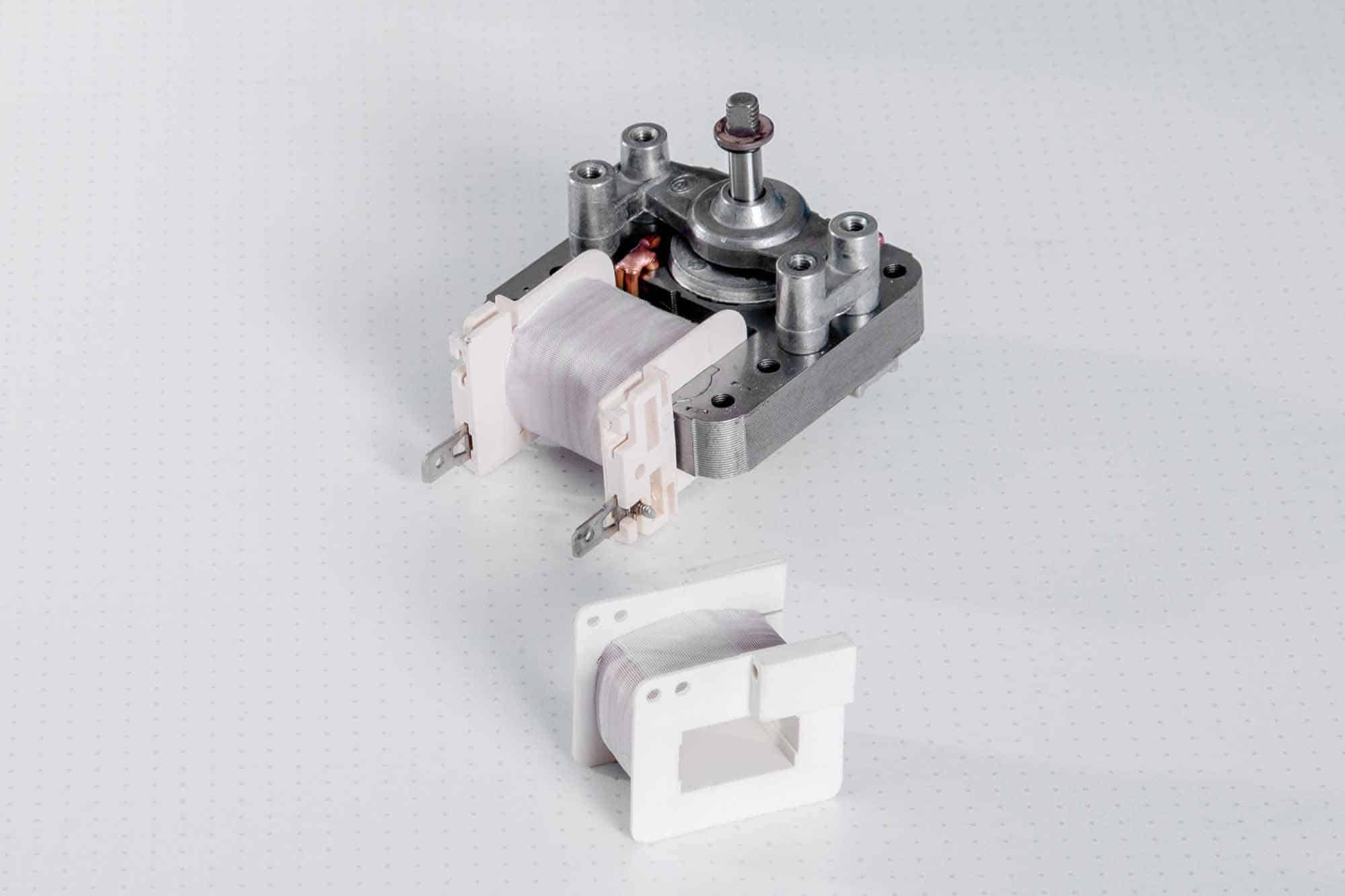

Household appliance wiring, micro-motors, automobiles, wind power, high-speed railways, military vehicles, space heating, air conditioning, shipbuilding, nuclear-powered generators, high-temperature pipelines, etc.
J-231
Color: White
Thickness: 0.18mm
Tensile Strength: 500 N/25mm
Temperature Resistance: 130°C
Length: 22 Yards
Adhesives: Rubber
Adhesion: 8 N/25mm
Breaking Elongation: 5%
Voltage Resistance: 3 KV
UL Certification: Yes
J-233
Color: White
Thickness: 0.18mm
Tensile Strength: 650 N/25mm
Temperature Resistance: 155°C
Length: 60 Yards
Adhesives: Acrylic
Adhesion: 10 N/25mm
Breaking Elongation: 5%
Voltage Resistance: 2 KV
UL Certification: Yes
J-236
Color: White
Thickness: 0.18mm
Tensile Strength: 650 N/25mm
Temperature Resistance: 180°C
Length: 60 Yards
Adhesives: Silicone
Adhesion: 9 N/25mm
Breaking Elongation: 5%
Voltage Resistance: 3 KV
UL Certification: Yes
J-236C
Color: White
Thickness: 0.18mm
Tensile Strength: 650 N/25mm
Temperature Resistance: 200°C
Length: 60 Yards
Adhesives: Silicone
Adhesion: 9 N/25mm
Breaking Elongation: 5%
Voltage Resistance: 3 KV
UL Certification: Yes
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
Item Color Adhesives Thickness Adhesion Tensile Strength
J-231 White Rubber 0.18mm 8 N/25mm 500 N/25mm
J-233 White Acrylic 0.18mm 10 N/25mm 650 N/25mm
J-236 White Silicone 0.18mm 9 N/25mm 650 N/25mm
J-236C White Silicone 0.18mm 9 N/25mm 650 N/25mm
Item Breaking Elongation Temperature Resistance Voltage Resistance Length UL Certification
J-231 5% 130°C 3 KV 22 Yards Yes
J-233 5% 155°C 2 KV 60 Yards Yes
J-236 5% 200°C 3 KV 60 Yards Yes
J-236C 5% 200°C 3 KV 60 Yards Yes
※The data provided in the table are the result obtained under general conditions and serve only as the guideline for purchase.
Product Application
